G-RF-101 Rev01 MultiPass Design Package
This design package contains all the files required to enable a person to modify the design:
- Circuit Schematic (Type: png)
- Sample PCB Layout (Type: png)
- Part list (Type: txt)
- Gerber Files (cmp, drd, dri, gpi, plc, sol, stc, sts)
- Source Code: Multipass Arduino project (zip) (source code for decoding HID and EM4100 RF tags)
- Eagle Layout files (zip)
Please note that these files may not be shared, published, distributed without the written permission from author via info@gizmolab.co.za
This package is intended for personal/academic purposes, should it be required directly/indirectly for commercial use, please contact the author via info@gizmolab.co.za
G-RF-101 Rev01 MultiPass Manufacture Package
This manufacture package contains all the files required to enable a person to get the PCB manufactured:
- Circuit Schematic (Type: png)
- Sample PCB Layout (Type: png)
- Part list (Type: txt)
- Gerber Files (cmp, drd, dri, gpi, plc, sol, stc, sts)
- Source Code: Multipass Arduino project (zip) (source code for decoding HID and EM4100 RF tags)
Note: It does not include the editable schematic and board layout files.
Please note that these files may not be shared, published, distributed without the written permission from author via info@gizmolab.co.za
This package is intended for personal/academic purposes, should it be required directly/indirectly for commercial use, please contact the author via info@gizmolab.co.za
G-RF-101 Rev01 MultiPass Student Package
This student package contains all the files required to enable a person to built the reader on veroboard or to design your own PCB:
- Circuit Schematic (Type: png)
- Part list (Type: txt)
- Source Code: Multipass Arduino project (zip) (source code for decoding HID and EM4100 RF tags)
Note: It does not include the editable schematic files.
Please note that these files may not be shared, published, distributed without the written permission from author via info@gizmolab.co.za
This package is intended for personal/academic purposes, should it be required directly/indirectly for commercial use, please contact the author via info@gizmolab.co.za
G-RF-102 Rev01 PetPass Student Package
This student package contains all the files required to enable a person to built the reader on veroboard or to design your own PCB:
- Circuit Schematic (Type: png)
- Part list (Type: txt)
- Source Code: Petpass Arduino project (zip) (source code for decoding FDX RF tags)
Note: It does not include the editable schematic files.
Please note that these files may not be shared, published, distributed without the written permission from author via info@gizmolab.co.za
This package is intended for personal/academic purposes, should it be required directly/indirectly for commercial use, please contact the author via info@gizmolab.co.za
PetPass – Handheld Animal RFID Reader

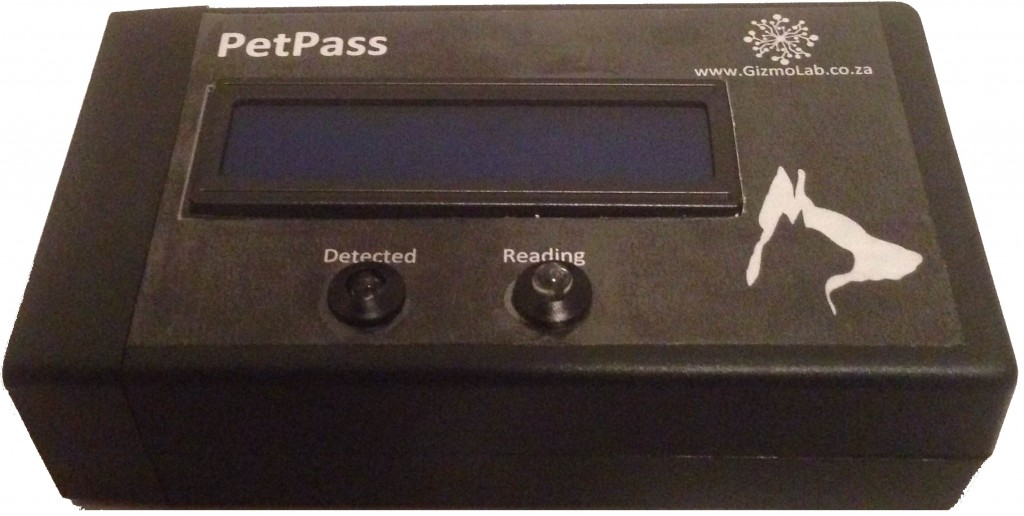

PetPass handheld reader Due to requests, the prototype reader as shown on GizmoLab have been duplicated and are now for sale. It is based on the PetPass DIY Kit, It can read FDX-B tags only.
Note: if the product is out of stock, please use the contact us facility to be notified once stock is available again.
